View In:   ArcGIS Online Map Viewer

Name: UWSeattleCampusLinework

Display Field: created_user

Type: Feature Layer

Geometry Type: esriGeometryPolyline

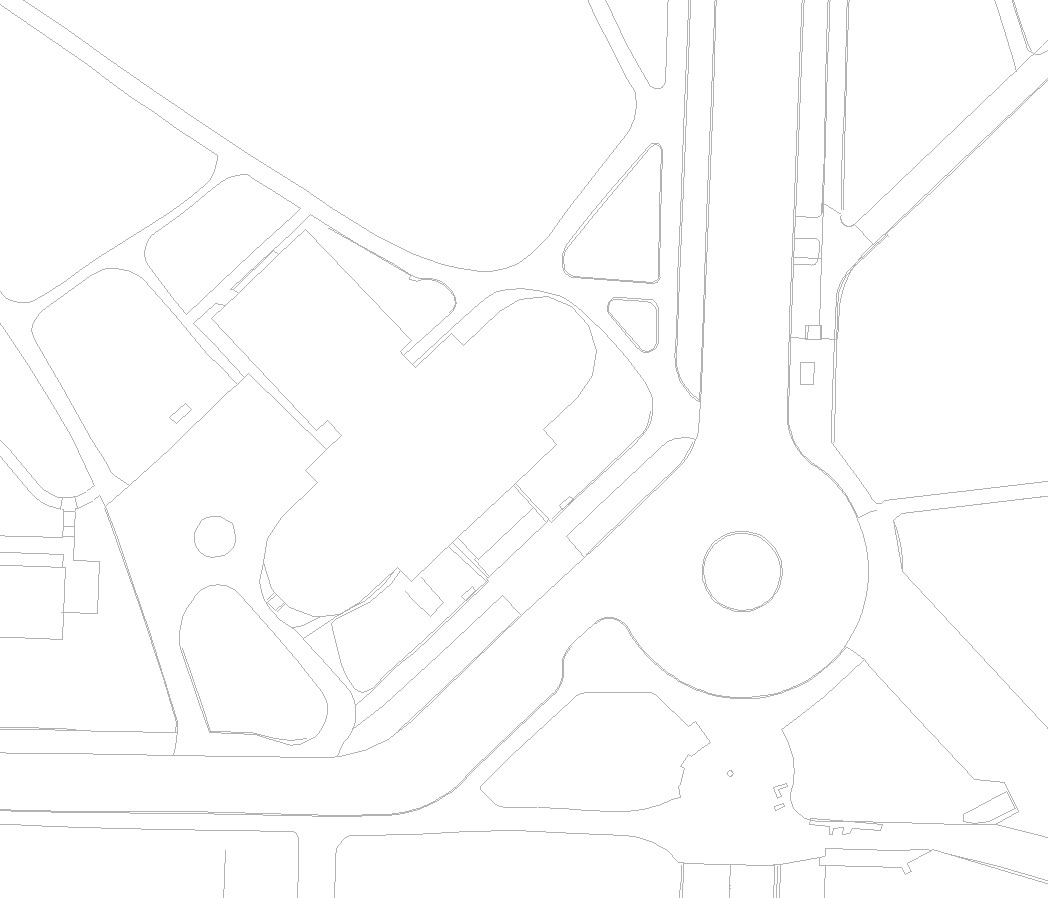

Description: The linework layer is one of the core components of the Seattle Campus GIS base maps produced by Engineering Services. It deliniates the various pathways, roads, landscape parcels and buildings on campus. In this way it demarcates the physical features on the campus. This is not a topographic layer. The base linework was extracted from AutoCAD and the background map that the Engineering Services Civil Engineer updates on a semiannual basis. All of the GIS base components (annotations, buildings and linework) originate in CAD and are brought into GIS.

Service Item Id: df92939222fd45a881b9b1aafd89c390

Copyright Text: Engineering Services, University of Washington

Default Visibility: true

MaxRecordCount: 2000

MaxSelectionCount: 0

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0.0

Max Scale: 0.0

Supports Advanced Queries: true

Supports Statistics: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports ValidateSQL: true

Supports Calculate: true

Supports Datum Transformation: true

Extent:

XMin: 1273256.657142803
YMin: 239616.2738454789
XMax: 1282391.7960247248
YMax: 246698.2951144725
Spatial Reference: 102748  (2285)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSLSSolid
Color: [204, 204, 204, 255]
Width: 1
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:

Feature Draw Order:

N/A

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: true
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: true
Supports Having Clause: true
Supports Count Distinct: true
Supports Time Relation: false
Supports Sql Format: false
Supports Query Analytic: true
Supports Query With Current User: true

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field:

Fields:

• OBJECTID ( modelName: OBJECTID, nullable: false, editable: false, defaultValue: N/A, alias: OBJECTID, type: esriFieldTypeOID )
• created_user ( modelName: created_user, nullable: true, editable: false, defaultValue: N/A, length: 255, alias: created_user, type: esriFieldTypeString )
• created_date ( modelName: created_date, nullable: true, editable: false, defaultValue: N/A, length: 8, alias: created_date, type: esriFieldTypeDate )
• last_edited_user ( modelName: last_edited_user, nullable: true, editable: false, defaultValue: N/A, length: 255, alias: last_edited_user, type: esriFieldTypeString )
• last_edited_date ( modelName: last_edited_date, nullable: true, editable: false, defaultValue: N/A, length: 8, alias: last_edited_date, type: esriFieldTypeDate )
• GlobalID ( modelName: GlobalID, nullable: false, editable: false, defaultValue: N/A, length: 38, alias: GlobalID, type: esriFieldTypeGlobalID )
• Shape__Length ( modelName: SHAPE.STLength(), nullable: true, editable: false, defaultValue: N/A, alias: SHAPE.STLength(), type: esriFieldTypeDouble, required: true )

Templates:

• Name: SeattleCampusLinework
  Description:
  Prototype:
  Drawing Tool: esriFeatureEditToolLine

Capabilities: Query,Sync

Sync Can Return Changes: true

Is Data Versioned: true

Supports Rollback On Failure: false

Supports ApplyEdits With Global Ids: false

Edit Fields Info:

• Creation Date Field: created_date
• Creator Field: created_user
• Edit Date Field: last_edited_date
• Editor Field: last_edited_user

Supports Query With Historic Moment: false

Supports Coordinates Quantization: true

Child Resources:

Supported Operations:   Query   Query Analytic   Append   Validate SQL   Generate Renderer   Return Updates   Iteminfo   Thumbnail   Metadata
